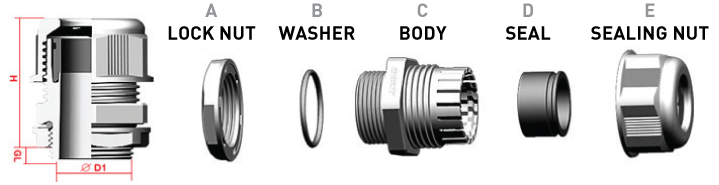

CABLE GLANDS

Sr. No.	Cable Range (mm)	Cat No.	Panel Hole Size
1	3.5 - 6	PG - 7	12
2	4 - 8	PG - 9	16
3	5 - 10	PG - 11	18
4	6 - 12	PG - 13.5	20
5	10 - 14	PG - 16	22
6	12 - 15	PG - 19	24
7	13 - 18	PG - 21	27
8	15 - 22	PG - 25	30
9	18 - 25	PG - 29	36
10	22 - 32	PG - 36	46
11	30 - 38	PG - 42	54
12	34 - 44	PG - 48	59
13	42 - 54	PG - 63	71

Sr. No.	Cable Range (mm)	Cat No.	Panel Hole Size
14	5 - 8	M - 12 x 1.5	12
15	6 - 10	M - 16 x 1.5	16
16	9 - 14	M - 20 x 1.5	20
17	13 - 18	M - 25 x 1.5	25
18	18 - 25	M - 32 x 1.5	32
19	24 - 30	M - 40 x 1.5	40
20	30 - 39	M - 50 x 1.5	50
21	40 - 48	M - 63 x 1.5	63

Sr. No.	Cable Range (mm)	Cat No.	Panel Hole Size
1	3.5 - 6	MPG - 7	12
2	4 - 8	MPG - 9	16
3	5 - 10	MPG - 11	18
4	6 - 12	MPG - 13.5	20
5	10 - 14	MPG - 16	22
6	13 - 18	MPG - 21	27
7	18 - 25	MPG - 29	36
8	22 - 32	MPG - 36	46
9	30 - 38	MPG - 42	54
10	34 - 44	MPG - 48	59

Sr. No.	Cable Range (mm)	Cat No.	Panel Hole Size
11	5 - 8	M - 12 x 1.5	12
12	6 - 10	M - 16 x 1.5	16
13	9 - 14	M - 20 x 1.5	20
14	13 - 18	M - 25 x 1.5	25
15	18 - 25	M - 32 x 1.5	32
16	24 - 30	M - 40 x 1.5	40
17	30 - 39	M - 50 x 1.5	50
18	40 - 48	M - 63 x 1.5	63
